Nozzle Accessories

Ball Joints



Ball Joints

When combined with a nozzle and mounted on a pipe, the spray direction may be changed and adjusted as required. Easy to handle. Loosen cap, move over the ball and tighten the cap, then the ball is fixed in position.


Please contact us for an enquiry/quote or further details.


Swivel Type Pipe Joints

Swivel type pipe joints

The same application as the ball joint. Since the ball is fastened by the spring with a fixed force, the position can be changed freely by the operator as required without having to loosen the cap, hence, no leak of liquid occurs.

Please contact us for an enquiry/quote or further details.


Inline Check Valves



Inline check valves

This is installed between the nozzle and the liquid feed pipe and when it is necessary to repeat start and stop of pump in a short time and to inject and stop spray instantly. The closing pressure of the check valve is 0.5kg/cm2.

Please contact us for an enquiry/quote or further details.



Special Elbows

Special Elbows

If a spray pattern does not reach the desired position only by fitting the nozzle directly to the pipe, this special elbow will help. The customer may specify the thread size and angle.

Please contact us for an enquiry/quote or further details.


Injectors

Injectors

For making an emulsion by mixing oil and water, when this injector is used, the mixing machine is not necessary. This is mainly used in mixing the rolling oil with a volume large of water and directly sending under pressure to the nozzle. In principle, this can be used while oil pressure is higher than water pressure. A check valve is built in the oil lead in port. When ordering please specify a)pressure and flow of oil, b)pressure and flow rate of water.

Please contact us for an enquiry/quote or further details.


Welded sockets

Welded sockets

This is a welded socket for a nozzle header. When this product is used, the nozzle mounting position is improved. The standard material is carbon steel but stainless steel may be available upon request.

Please contact us for an enquiry/quote or further details.

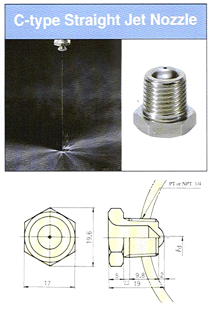

C-type Straight Jet Nozzles

C-type Straight jet nozzles

Since the nozzle is connected directly to shower pipe and the nozzle orifice is projected inside the shower pipe, no accumulation of foreign matter near the orifice occurs. It is advantageous against clogging and cleaning is easy. There is better needle spray performance at high pressure. It is available in materials such as stainless steel, cemented carbide and ceramics. It is used for high pressure washing of wire and felt and washing of dandy roll exterior etc.

Please contact us for an enquiry/quote or further details.

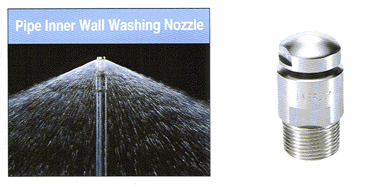

Pipe Inner Wall Washing Nozzle

Pipe Inner Wall Washing Nozzle

Having slits in the periphery, this nozzle provides a cone, donut-formed spray pattern. A water curtain washes the entrie inner wall of pipes uniformly and effectively. The standard material is stainless steel (SUS303). The nozzle is available in various connection sizes from PT or NPT 1/4.

Please contact us for an enquiry/quote or further details.

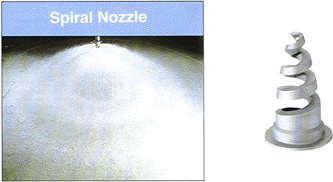

Spiral nozzles

Spiral nozzles

The spiral nozzle does not cause clogging because it has no parts inside. Although it is compact, this hollow cone nozzle, which is available in the double spiral and the triple spiral type, ensures a relatively large flow rate. As the material for the nozzle, stainless steel, brass, resin or other special kinds of steel can be selected.


Please contact us for an enquiry/quote or further details.

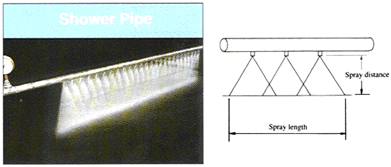

Shower Pipes

Shower pipes

To make the best use of nozzles, we will select and lay out nozzles, and design and manufacture shower pipes based on your requests.


Please contact us for an enquiry/quote or further details.


Parasol Nozzles

Parasol Nozzles

The nozzle to spray in a wide angle conical form (hollow). Used in washing, melting snow, cooling, dust protection and water sprinkling. The spray direction forward or backward.

Please contact us for an enquiry/quote or further details.


Ring Spray Nozzles

Ring spray nozzles

The nozzle for hollow conical form. Used in gas cleaning, cooling, dust protection and other environmental protections. Applied where spraying of particularly large capacity is needed. The structure is free from clogging of nozzle and the water is sprinkled in a beautiful annular form without any breakage in the water film.

Please contact us for an enquiry/quote or further details.


Spray Dryer Nozzles

Spray dryer nozzles

Used for spray dryer, this nozzle comprised of a cemented carbide nozzle tip and whirl chamber and excels in wear resistance.ests.

Please contact us for an enquiry/quote or further details.


Twin Flat Spray Nozzles

Twin Flat Spray Nozzles

Developed for cooling and washing the roller conveyors or rolled steel plates at steelworks, this nozzle is used to sprinkle insectisides, disinfectants and other chemical solutions in a wide range. This is particularly useful when spreading uniformly in a flat plate to a narrow and deep place. By use of this nozzle , the piping system is simplified and the construction cost and facility maintenance cost may be saved.


Please contact us for an enquiry/quote or further details.

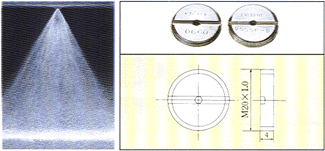

Cats Eye Nozzles

Cats Eye Nozzles

Since the nozzle is not protected when connected on the header, it is useful when the spray distance is very short or connecting space is limited. Besides, since the orifice is different from the oval form of the conventional flat nozzle and has a circular section, the minimum passage diameter is increased and clogging is less. For connecting, the threads are directly formed in the side of the pipe and the nozzle is screwed in and welded to fix firmly.


Please contact us for an enquiry/quote or further details.

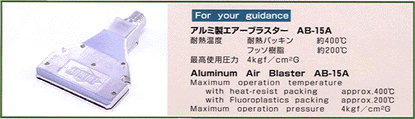

Air Nozzle

Air Nozzle

Everloy's Air Blaster nozzle newly born with new design and development to get strong and uniform air impact spray. Low noise air blasting compared to conventional nozzle which is very kind to environmental circumference.


Please contact us for an enquiry/quote or further details.
